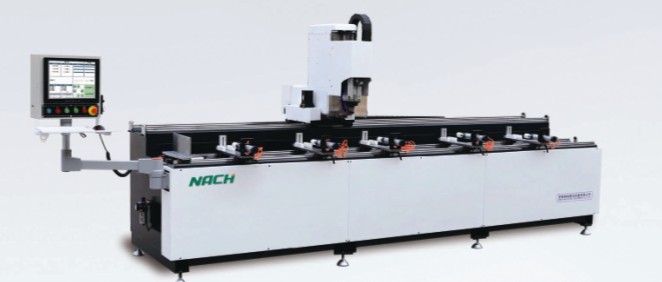

1、产品简介 Product Description：
采用先进工业数控系统，友好人机界面，设备操作简便；
Using advanced industrial
CNC systems, friendly machine interface and operation is simple
适用于铝合金型材、铝木复合型材、铜型材等轻质合金，以及U-PVC型材的加工；
Suitable for aluminum,
aluminum / wood composite profile, profiles and other light alloys of copper,
as well as the u-PVC profile processing
床身采用高强度钢管焊接结构，经热时效处理后一次装夹加工完成；
Bed made of high
strength steel welded structure, completed after thermal aging treatment of
machining in one clamping
采用进口高精度直线导轨副、滚珠丝杠、齿轮齿条及进口伺服电机，保证运动平稳，具有较高的定位及加工精度；
Adopts imported high
precision linear guideways, ball screws, gear racks and servo motor, ensuring
smooth motion, positioning and processing of high precision
采用高品质进口高速电主轴确保加工稳定性，转动稳定噪音小，切削能力强。
High-quality imported
high speed spindle ensure stability, stability of rotation noise, cutting
ability
2、应用行业 Industry
Application：
交通运输产品制造（火车、汽车、船舶等），医疗器械、卫浴配件、门窗幕墙、室内外装饰等行业。
Transportation products
manufacturing (trains, cars, ships, etc), Medical equipment, bathroom
accessories, windows&doors, curtain walls, interior decoration and other
industries.
3、技术参数 Technical Parameters：
|
X轴行程
X-axis stroke
|
3500mm
|
Y轴行程
Y-axis stroke
|
300mm
|
|
X轴进给速度
X-axis feed rate
|
0~60m/min
|
Y轴进给速度
Y-axis feed rate
|
0~48m/min
|
|
X轴定位精度
X-axis positioning accuracy
|
±0.05mm
|
Y轴定位精度
Y-axis positioning accuracy
|
±0.05mm
|
|
Z轴行程
Z-axis stroke
|
200mm
|
重复定位
Repeat location accuracy
|
±0.02mm
|
|
Z轴进给速度
Z-axis feed rate
|
0~20m/min
|
加工面粗糙度
Roughness
|
Ra 6.3 um
|
|
Z轴定位精度
Z-axis positioning accuracy
|
±0.02mm
|
主轴功率
Spindle Power
|
5.5kW
|
|
电源规格
Power Specification
|
380V/50Hz
|
主轴转速
Spindle Speed
|
0~18000rpm
|
|
机床总功率
Total Power of Machine
|
8.5kW
|
工作气压
Working Pressure
|
0.6～0.8MPa
|
|
机床尺寸
Machine Size
|
5100x1420x1750mm
|
机床重量
Weight
|
1600kg
|
